AGB Art. E390000334 Eclipse 3.2 hinge with closer, matte chrome

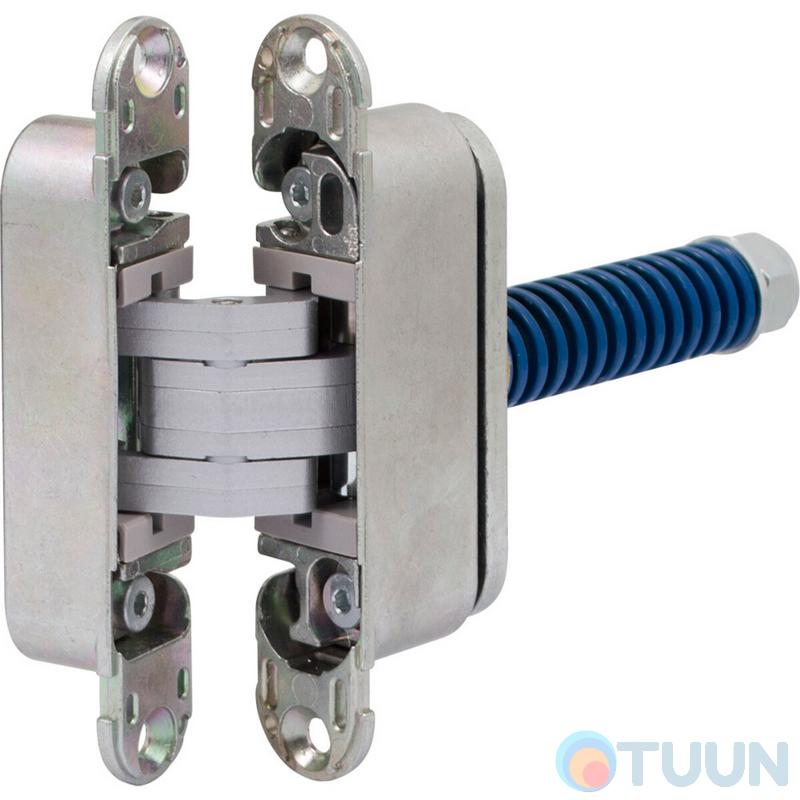

AGB E390000334 Eclipse 3.2 concealed door hinge with a closer, matte chrome

AGB has been specializing in the production of door hinges for over 70 years. Based on experience, tradition, the latest technologies and high-quality materials, the brand creates a high-quality product with unique technological characteristics.

The Eclipse 3.2 concealed door hinge has a built-in, adjustable closer, which provides the door structure with self-closing. The closing speed is regulated by the rotation of the closer spring. The hinge remains unnoticed even when the door is closed, which allows you to achieve ideal surface geometry. The model is suitable for installation on aluminum and wooden doors, and the maximum permissible load on two hinges is 60 kg. High-quality ZAMAK material is used for manufacturing, which is resistant to corrosion.

AGB Eclipse 3.2 Features:

• Material – ZAMAK;
• Color – matte chrome;
• Width - 115;
• Height – 22;
• Depth – 145;
• Mounting principle – mortise;
• 100% Italian quality.

Eclipse 3.2 curtains can be adjusted in three planes:

• Vertical – +2/-2 mm;
• Horizontal – +1.5/-1.5 mm;
• In depth – +1/-1 mm.

Hinges guarantee smooth door movement and the ability to open 180 degrees.

Hidden hinges, AGB
