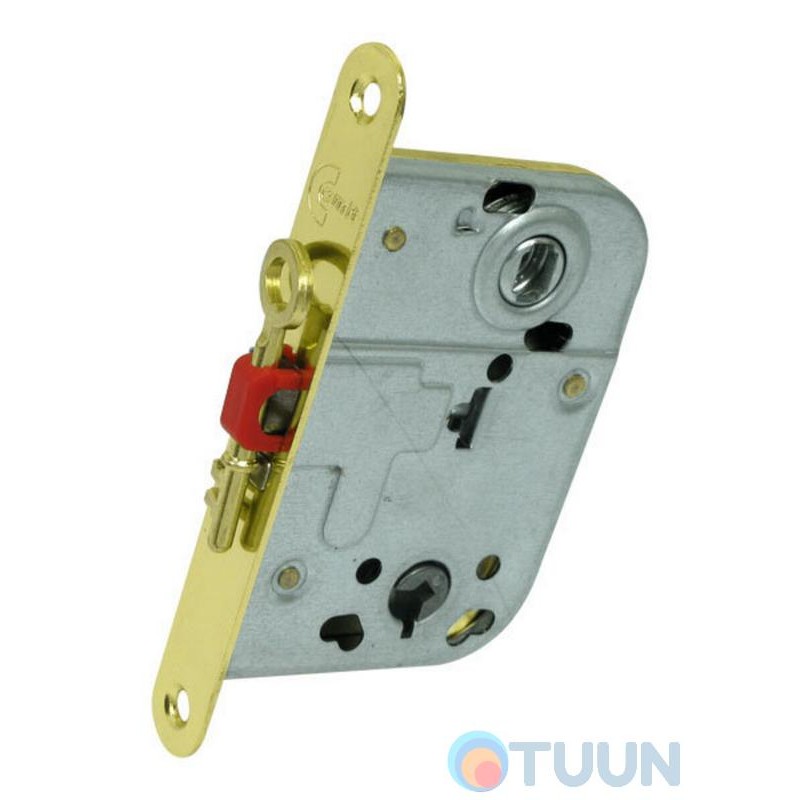

Comit -2014 with narrow end 0068-polished brass

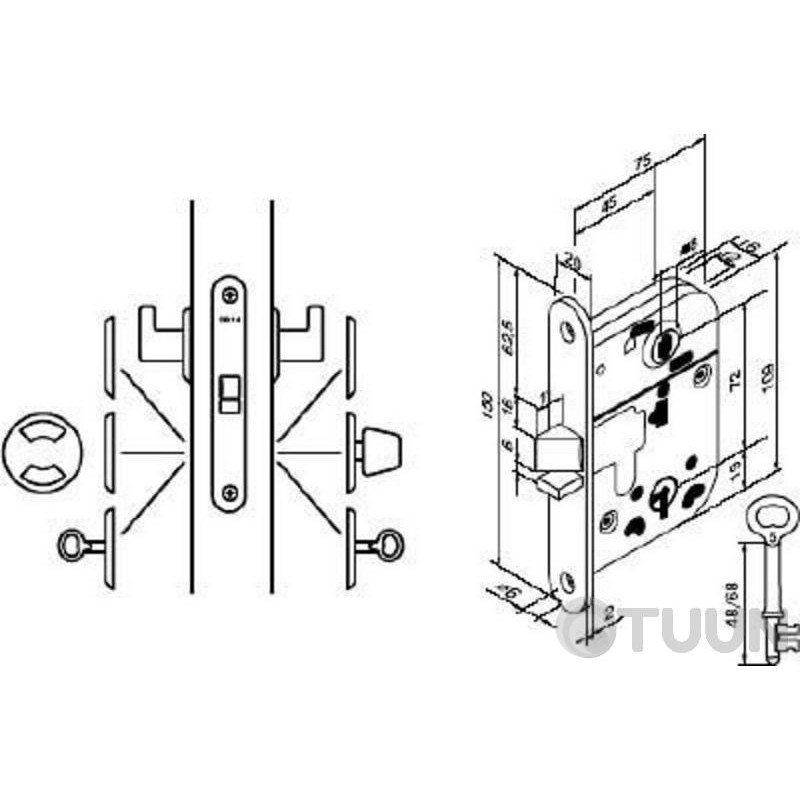

Comit 2014 mechanism for interior wooden and sanitary doors. The mechanism is made of high-strength metal. The housing is protected from dust or wood chips. Installation is simple and does not require special skills. The reversibility of the latch allows it to be installed on left- and right-hand opening doors. The center distance between the center of the handle and the center of the key insertion is 72 mm. The distance (backset) from the outer edge of the end plate to the center of the handle is 45 mm. It is completed with the corresponding plate. The lock is closed using the standard key included in the kit, or a WC-turn handle.

Technical characteristics:
Comit 2014 mechanism
Model: 2014;
Door type: wood;
Latch type: Reversible;
Center distance, mm 72;
Square clearance under the handle, mm: 45;
Dimensions: 150x75x22 mm.
