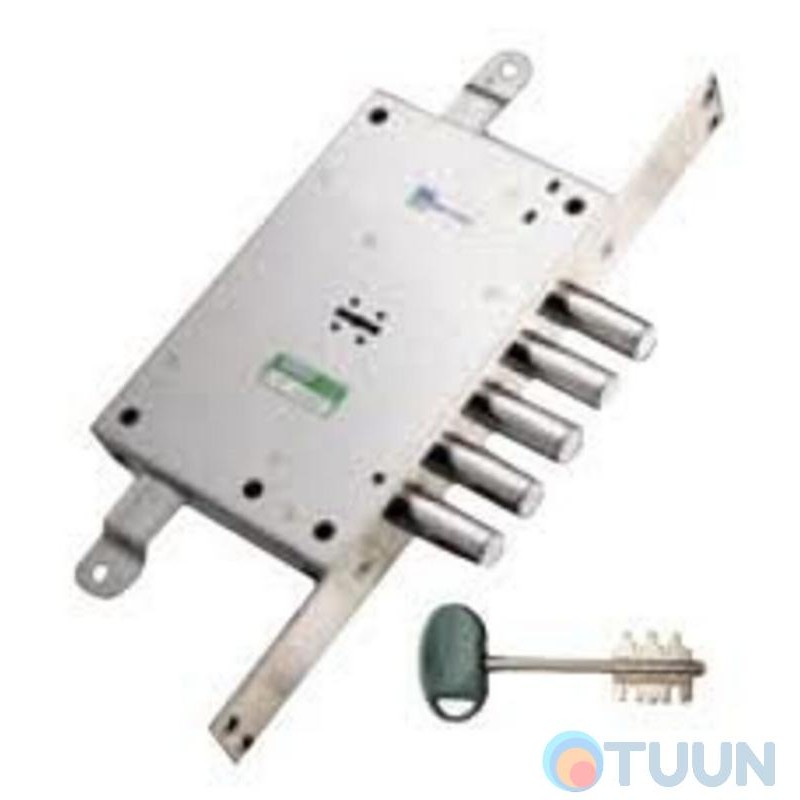

Mottura Art. 52783DM2854 (TSBM) 5-rig lock for pulls

Mottura 52783DM2854 front door lock is a 5-mortise bolt, mortise, with three-sided locking lock with protection against pulls. The body and cover of the lock are made of steel. Bolt: five steel bolts with a diameter of 18 mm. Bolt projection - 40 mm., for 4 half-turns. Removal of the keyhole and handle handle (Backset) 63 mm. Key length 50 mm.

Mottura 52.783 mortise lock has patented mechanisms that prevent the use of master keys, making it difficult to break the lock. The locks have a patented device against pressing the bolts inside the lock. Five-bolt mortise mortise lock. Full locking 4 half-turns at 180', bolt diameter 18 mm, extension 40 mm. Extension of rods - 20 mm. The lock is equipped with new generation keys with variable coding, which have independent left and right sides, since the distance between opposite teeth changes from position to position. In this regard, the manipulation of the lock is significantly complicated. Due to the asymmetry of the key sides, the number of code combinations increases many times.

The Mottura 52.783 lock is equipped with 6 mortises, among which there are mortises that do not have springs. Also, the mortise block is located closer to the inside of the lock, and the shank stand has a built-in carbide ball that prevents drilling. This circumstance significantly complicates the opening of the lock with pickaxes and other criminal methods. Suitable for both right- and left-hand doors.

Complete set:
1 lock
3 50 mm lever keys

Description:
Mortise lock. Keyhole clearance: 63 mm
Bolt travel: 40 mm, in 4 half-turns.
3 keys.

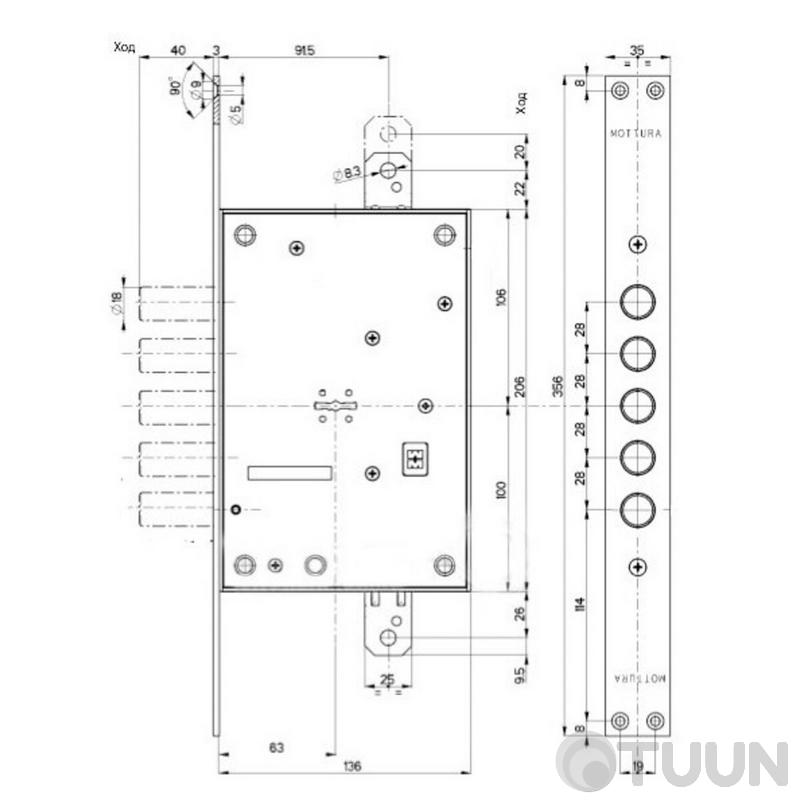

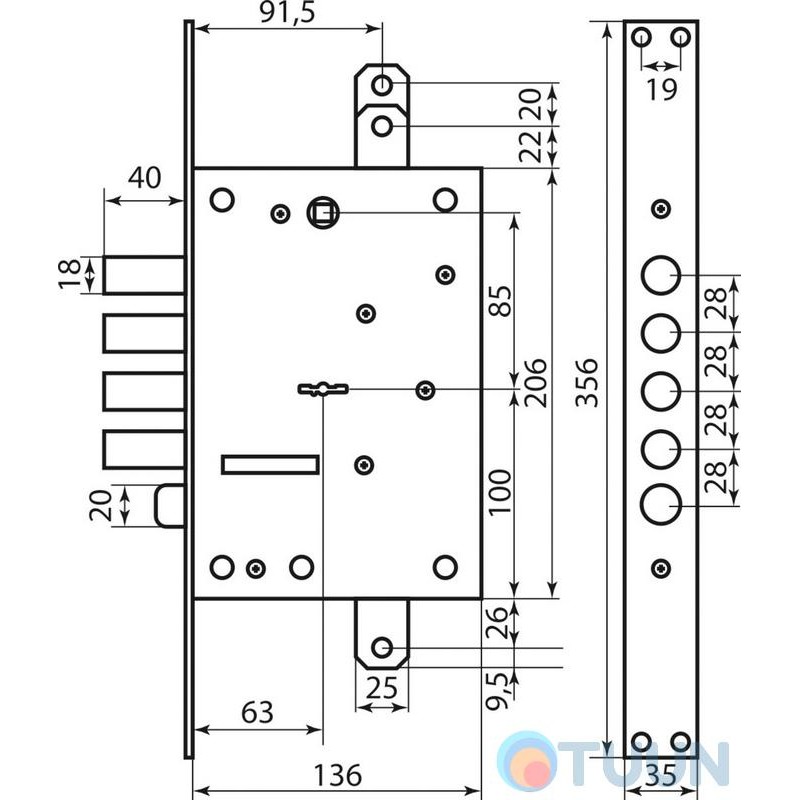

Dimensions: 35x136x356 mm.

Care tips. To avoid breakage or jamming of the door lock, it must be properly cared for, as dust and dirt can accumulate in it. Therefore, the locks on the apartment doors must be lubricated at least once a year, and in case of increased load, up to 4 times. In this case, it is most recommended to use lock care products from the manufacturer, which will be specially designed for this type of lock.

Mottura front door locks are reliable and high-quality Italian locks, time-tested and have proven themselves positively among professionals and consumers.
