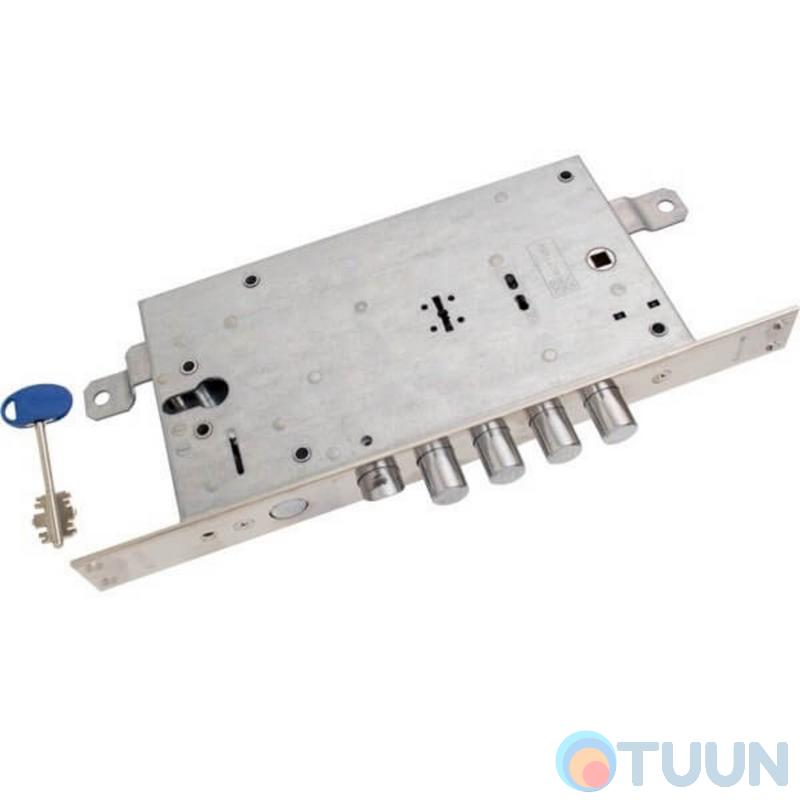

Mottura Art. 54797TBSR54 MATIC 4-bolt lock with latch and additional lock for Euro cylinder

The Mottura 54797TBSR54 MATIC front door lock is a 4-bolt lock with a latch and an auxiliary lock for a Euro cylinder. It is mortise, dual-system, semi-dependent, with three-way locking. The body and cover are made of steel. When closing with a cylinder lock, the deadbolt hole is covered by a special lever - a "curtain", preventing manipulation with lock picks and complicating vandalism. The main deadbolt lock: Deadbolt - four steel deadbolts with a diameter of 18 mm., Deadbolt projection - 40 mm, for four half-turns. Additional cylinder lock: one deadbolt with a diameter of 18 mm, deadbolt projection 20 mm. for two turns. Removal of the keyhole and the backset 63 mm. The latch can be unlocked with both the handle and the key. The lock can be right-handed or left-handed, this model is left-handed.

Model 54.797 MATIC has a one-time recoding system and is equipped with an assembly key. After recoding, the assembly key no longer fits this lock.

Mottura 54797 lock is a combination lock. Combination locks (PLURISYSTEM) have two different types of locking, combined in one lock, and provide reliable protection against opening and burglary: the upper lever mechanism provides the main force locking of the lock, the lower cylinder lock provides a control function. The lock provides for dependent locking of both mechanisms: when the cylinder mechanism is locked, the upper keyhole is covered by a shutter.

The Mottura 54797 mortise lock is equipped with new-generation keys with variable coding, which have independent left and right sides, since the distance between the opposite teeth changes from position to position. In this regard, the manipulation of the lock opening is significantly complicated: to determine the key coding, it is necessary to reproduce the changes of both sides of the key and decode the first and second turns; due to the asymmetry of the sides of the key, the number of code combinations increases many times.

The Mottura 54797 lock is equipped with 6 levers, among which there are levers that do not have springs. Also, the lever block is located closer to the inside of the lock, and the shank stand has a built-in carbide ball that prevents drilling. This circumstance significantly complicates the opening of the lock with pickaxes and other criminal methods. It is recommended to install a manganese plate for the lock and an armor plate for the cylinder mechanism.

Mottura lever locks have a special patented mechanism against pressing the bolts inside the lock. The key set is supplied in individual packaging, in a set of 5 keys. The number of code combinations is 144,000.

Description:

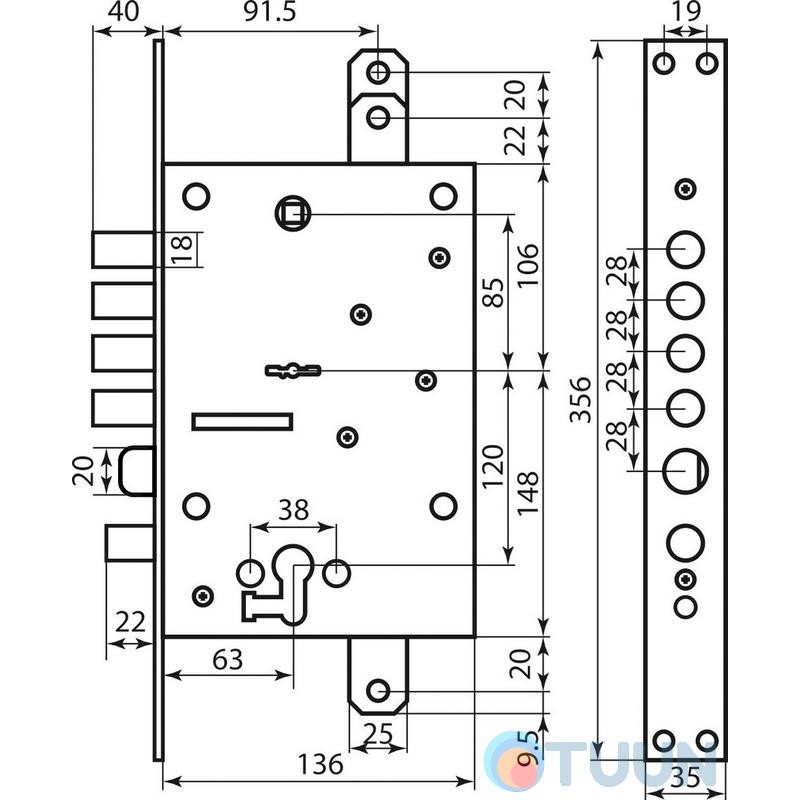

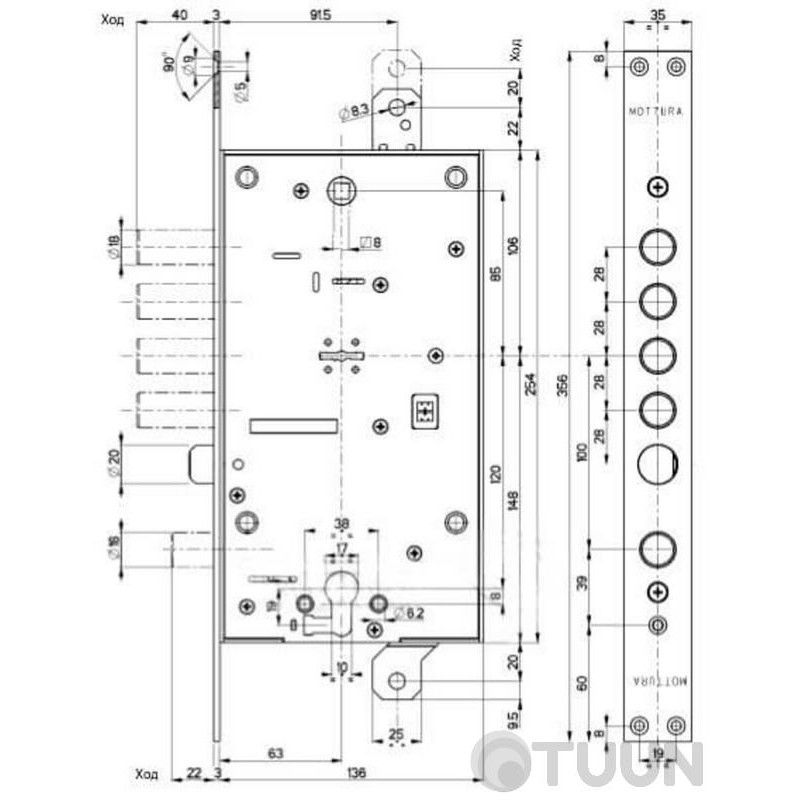

Mortise lock. Keyhole clearance: 63 mm.
Bolt travel: 40 mm, per 4 half-turns.
5 lever keys. Key length 40 mm.
Dimensions: 35x136x356 mm.

Care tips. To avoid breakage or jamming of the door lock, it must be properly cared for, as dust and dirt can accumulate in it. Therefore, locks on apartment doors should be lubricated at least once a year, and in case of increased load up to 4 times. In this case, it is most recommended to use lock care products from the manufacturer, which will be specially designed for this type of lock.

Mottura front door locks are reliable and high-quality Italian locks, time-tested and have proven themselves positively among professionals and consumers.
