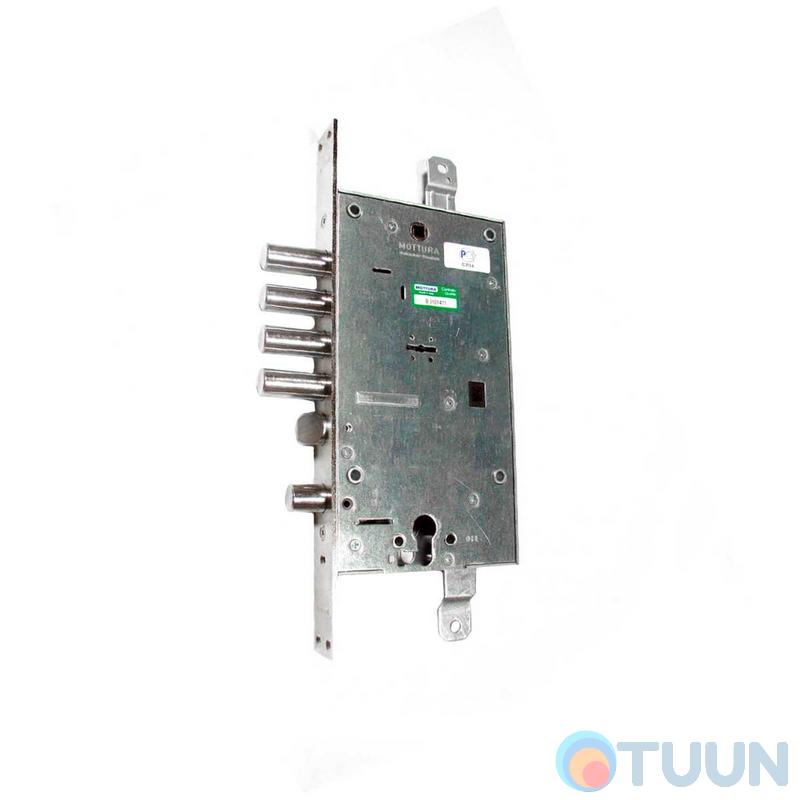

Mottura Art. 54797TSMSR54CR 4-bolt lock with latch, and additional lock for euro cylinder with chrome plating

Mottura 54797TSMSR54CR front door lock is a 4-bolt lock with a latch and an auxiliary lock for a Euro cylinder. It is mortise, dual-system, semi-dependent, with three-way locking. The body and cover are made of steel. When closing with a cylinder lock, the deadbolt hole is covered by a special lever - a "curtain", preventing manipulation with lock picks and complicating vandalism. Main deadbolt lock: Deadbolt - four steel deadbolts with a diameter of 18 mm., Deadbolt projection - 40 mm, for four half-turns. Additional cylinder lock: one deadbolt with a diameter of 18 mm, deadbolt projection 20 mm. for two turns. Removing the keyhole and the backset handle (Backset) 63 mm. The latch can be unlocked with both the handle and the key. The lock can be right-handed or left-handed, this model is left-handed. In addition, the lock is equipped with chrome-plated key covers.

The Mottura 54797 lock is a combination lock. Combination locks (PLURISYSTEM) have two different types of locking, combined in one lock, and provide reliable protection against opening and breaking: the upper lever mechanism provides the main force locking of the lock, the lower cylinder lock provides a control function. The lock provides dependent locking of both mechanisms: when the cylinder mechanism is locked, the upper keyhole is covered by a shutter.

The Mottura 54797 mortise lock is equipped with new-generation keys with variable coding, which have independent left and right sides, since the distance between the opposite teeth changes from position to position. In this regard, the manipulation of the lock opening is significantly complicated: to determine the key coding, it is necessary to reproduce the changes on both sides of the key and decode the first and second turns; due to the asymmetry of the key sides, the number of code combinations increases many times over.

The Mottura 54797 lock is equipped with 6 levers, including levers that do not have springs. Also, the lever block is located closer to the inside of the lock, and the shank stand has a built-in carbide ball that prevents drilling. This circumstance significantly complicates the opening of the lock with pickaxes and other criminal methods. It is recommended to install a manganese plate for the lock and an armor plate for the cylinder mechanism.

Mottura lever locks have a special patented mechanism against pressing the bolts inside the lock. The set of keys is supplied in individual packaging, in a set of 5 keys. The number of code combinations is 144,000.

Description:

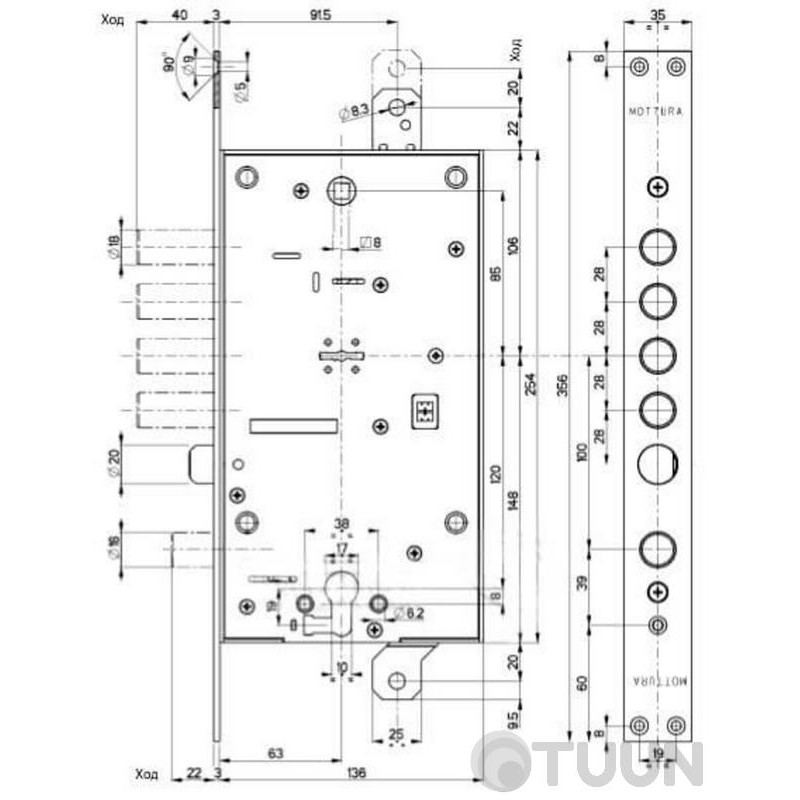

Mortise lock. Keyhole removal: 63 mm.
Bolt travel: 40 mm., for 4 half turns.
5 lever keys. Key length 40 mm.
Body: 254 x 136 x 30.5 mm.

Front door locks, Mottura
