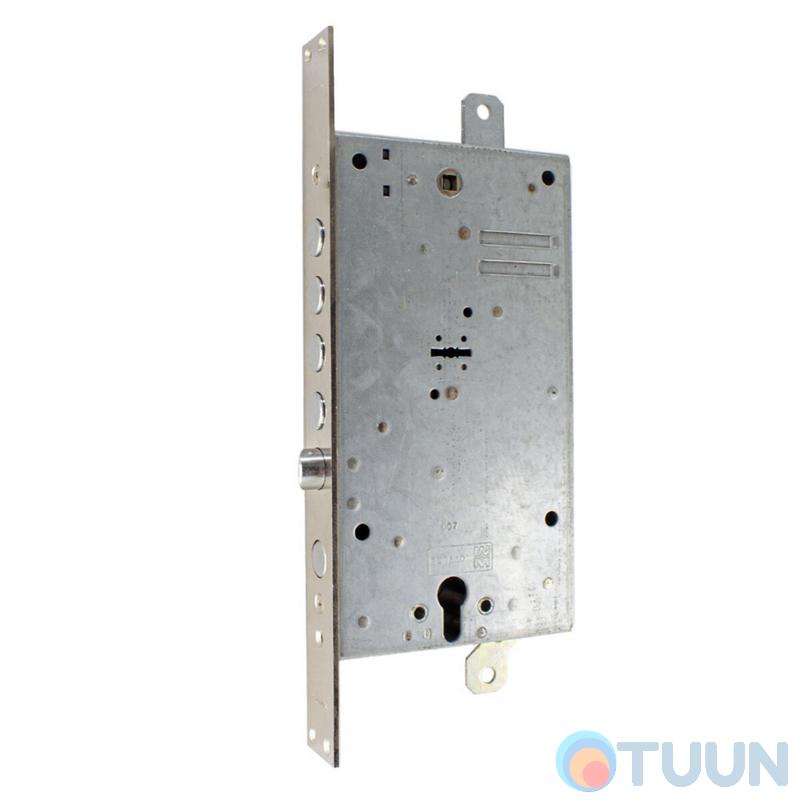

Mottura Art. 54N897DP8RD54 4-bolt lock with latch, key and additional lock for Euro cylinder

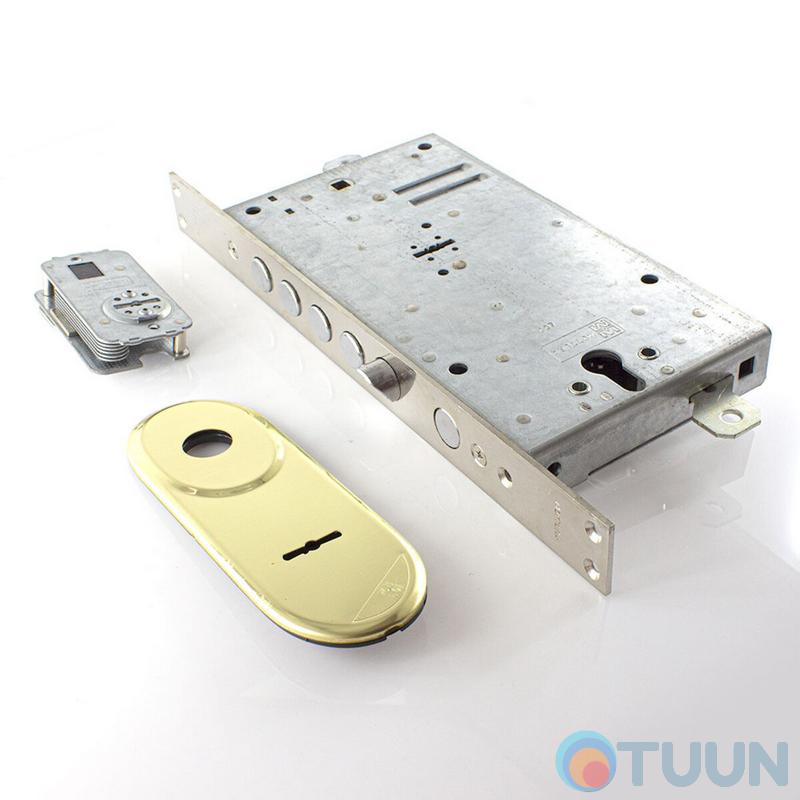

Mottura 54N897DP8RD54 front door lock is a 4-bolt lock with a latch and an auxiliary lock for a Euro cylinder. It is mortise, dual-system, semi-dependent, with three-way locking. The body and cover are made of steel. When closing on a cylinder lock, the deadbolt hole is covered by a special lever - a "curtain", preventing manipulation with lock picks and complicating vandalism. Main deadbolt lock: Deadbolt - four steel deadbolts with a diameter of 18 mm., Deadbolt projection - 40 mm, for four half-turns. Additional cylinder lock: one deadbolt with a diameter of 18 mm, deadbolt projection 20 mm. for two turns. Removing the keyhole and the backset handle (Backset) 63 mm. The latch is unlocked with both the handle and the key. The lock can be right-handed or left-handed, this model is right-handed. The Mottura 54N897 lock is equipped with a removable secret Nucleo Compact lever mechanism. Which is easy to replace if the keys are lost. The replaceable mechanism uses the ANTIDECO system and an advanced lever system with traps in the form of teeth on the edges of the levers, which prevent the lock from being opened by pickaxes.

The trap mechanism consists of special teeth on the levers and slots in the shank, on which the set of levers is held. The principle of operation of the trap mechanism is that when you try to lift the levers with pickaxes and insert the bolts, the teeth on the levers fall into the slot on the shank and block the levers. Thus, opening the lock with a master key is practically impossible. The trap system also does not allow decoding the key profile using a vibration master key.

In addition to the above, in order to complicate opening the lock in the above-mentioned way, the Mottura company has developed the ANTIDECO system, which is used in locks with nucleo compact.

Locks with a lever locking system, and, accordingly, the keys to the locks, are not the same, in addition to their appearance, they differ in the type of key profile, which actually ensures the secrecy of the lock. The key profile can be with the same distance (C) between the opposite teeth of the key (A,B), which is repeated on the entire key, or with a variable distance (C). In the antideco system, the distance between the opposite teeth changes from position to position. This profile makes the process of restoring the shape of the key more complicated and time-consuming, since the attacker needs to determine the profile of both key blades. Such locks belong to the second generation of lever locks.

Description:
Mortise lock. Keyhole clearance: 63 mm.
Bolt travel: 40 mm., for 4 half turns.
from a lever key. Key length 40 mm.
Dimensions: 35x136x356 mm.

Care tips. To avoid breakage or jamming of the door lock, it must be properly cared for, as dust and dirt can accumulate in it. Therefore, locks on apartment doors must be lubricated at least once a year, and in case of increased load up to 4 times. In this case, it is most recommended to use lock care products from the manufacturer, which will be specially designed for this type of lock.

Mottura front door locks are reliable and high-quality Italian locks, time-tested and have proven themselves positively among professionals and consumers.
