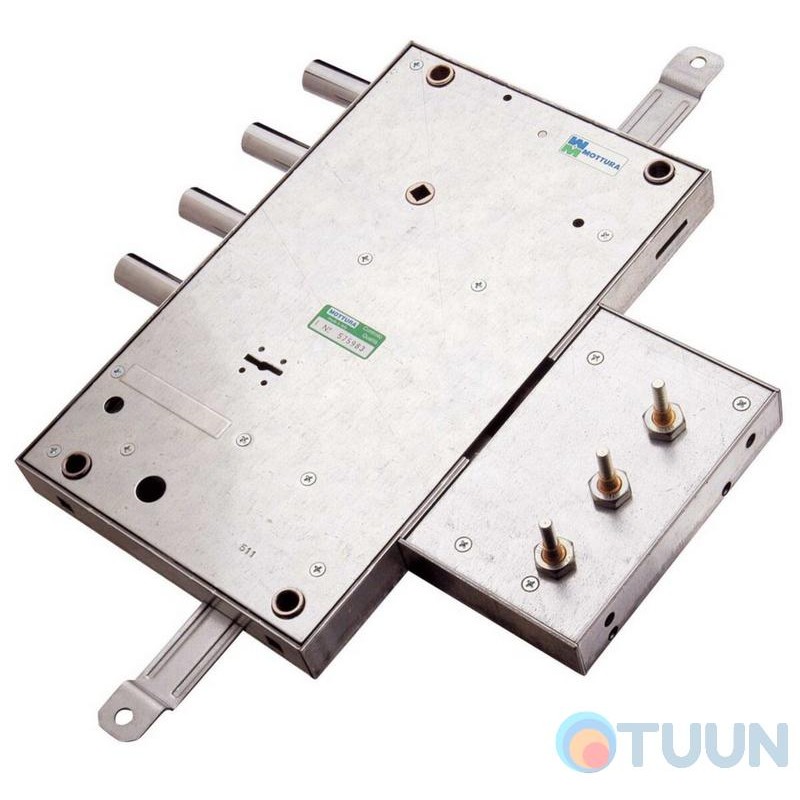

Mottura Art. 65564DMZO54 Lock for metal cabinets 4-digit, for pulls, with digital mechanism, with handle

Lock for metal cabinets Mottura 65564DMZO54 is a 4-bolt mortise lock with three-sided locking of the "Serrablinda" type, with protection against pulls. The lock is locked on one side by the mortise part, on the other - by the code mechanism drive (similar to a safe lock, but this part does not rely on special protective properties - it is mainly a means of access control). From the inside, it is possible to lock both the mortise part and the mortise drive. Also, the lock has the ability to block the lock from the inside. The body and cover of the lock are made of steel. Bolt: four steel bolts with a diameter of 18 mm. Bolt projection - 40 mm., for 4 half turns. Removal of the keyhole and the handle (Backset) 70 mm. Key length 40 mm. The lock is supplied exclusively in the right-hand version.

Complete set:
1 lock
3 40 mm lever keys
1 chrome-plated cover
1 cover for the digital mechanism

Description:
Mortise lock. Keyhole removal: 70 mm.
Bolt travel: 40 mm, in 4 half turns;
Housing: 77x185x305 mm.

Care tips. To avoid breakage or jamming of the door lock, it is necessary to properly care for it, as dust and dirt can accumulate in it. Therefore, locks on apartment doors should be lubricated at least once a year, and in case of increased load up to 4 times. In this case, it is most recommended to use lock care products from the manufacturer, which will be specially designed for this type of lock.

Mottura front door locks are reliable and high-quality Italian locks, time-tested and have proven themselves positively among professionals and consumers.

Front door locks, Mottura
