Mottura Art.XTL21W8000 99697 XNOVA Castle

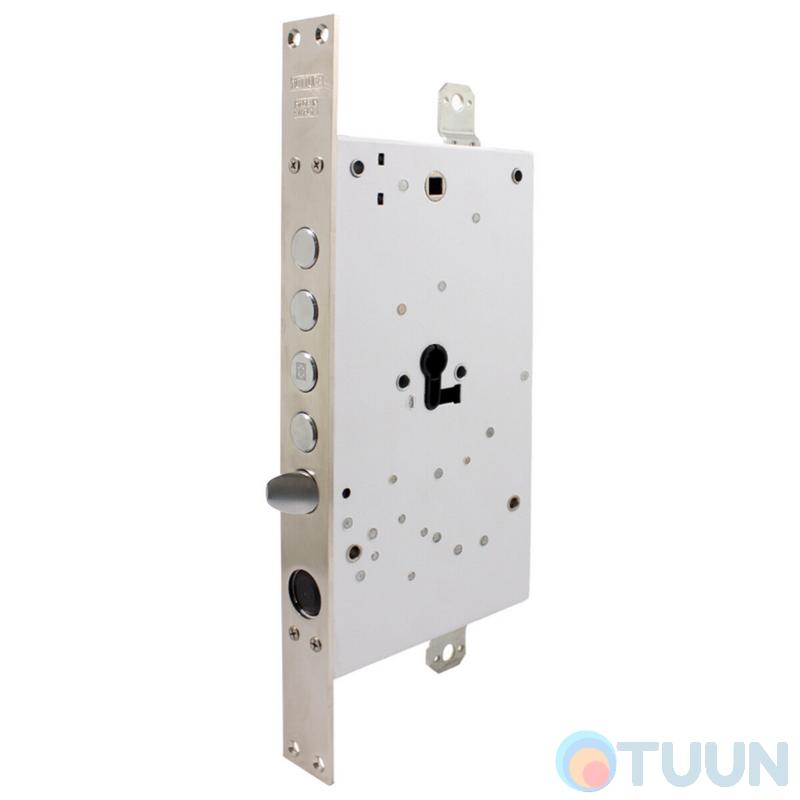

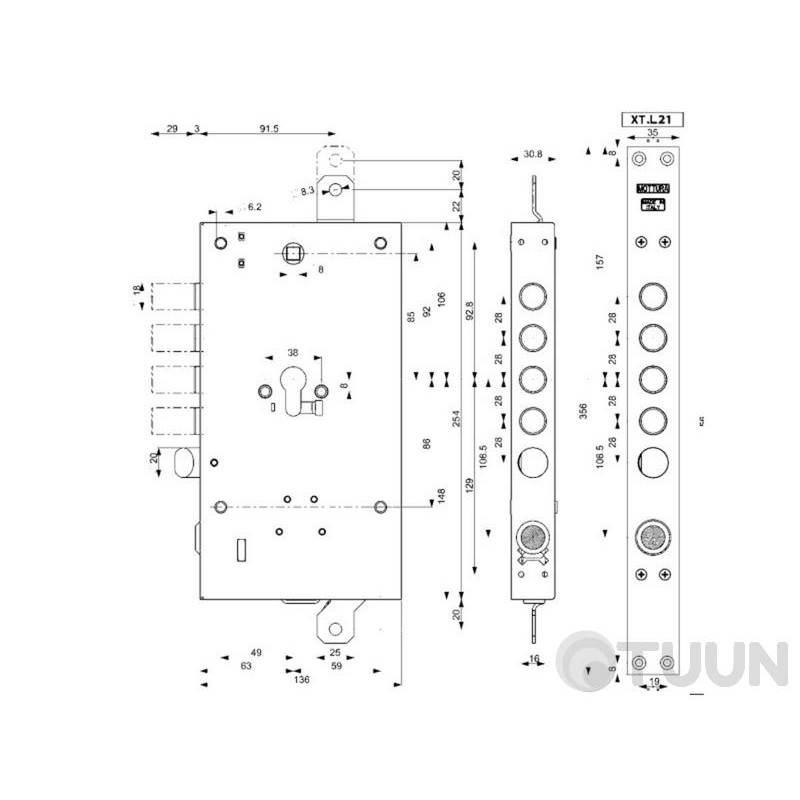

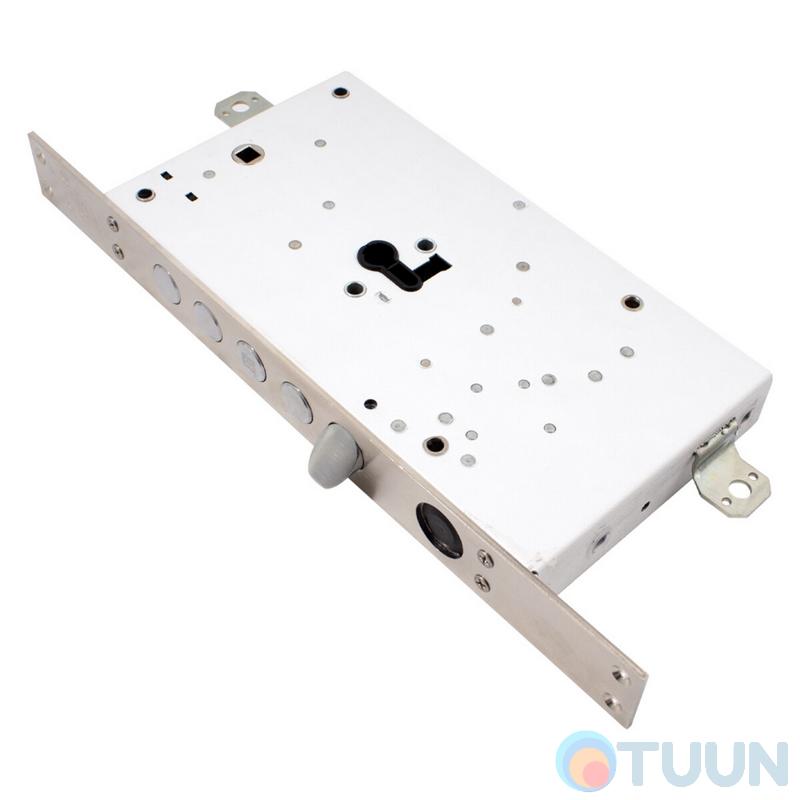

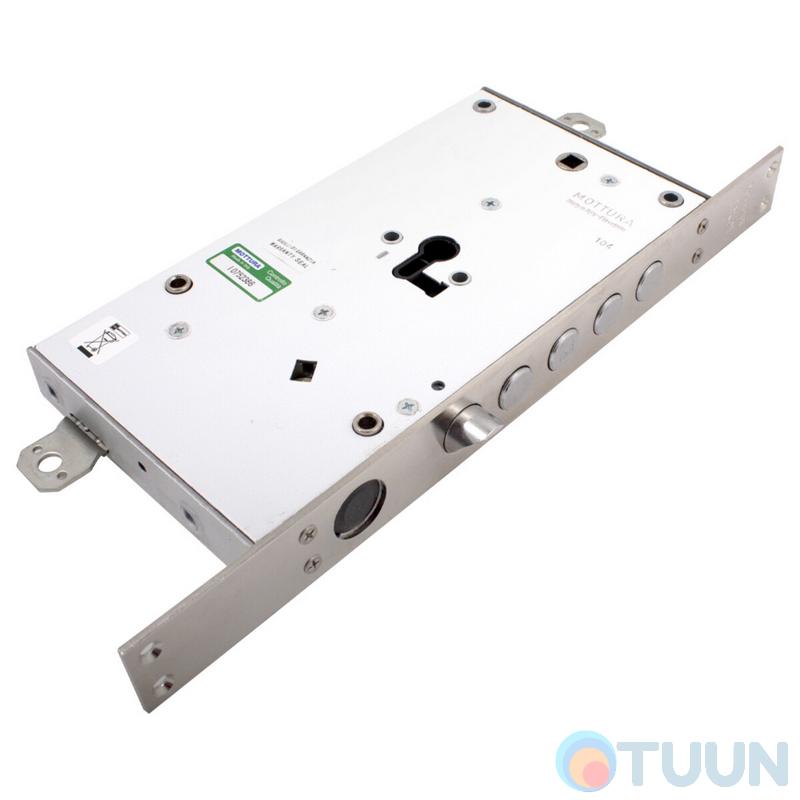

MotturaXTL21W8000+99697 electric motor lock - mortise lock with magnetic sensor with quick opening using a handle, battery or mains power. The lock has a round sensor, a magnet on the box, when closed, the sensor combines with the magnet and the lock closes. Lock with internal electronic board, with a cable for a dry contact for connecting a button. Anti-panic system when pressing the handle from the inside - the lock bolts open.Features of the XNOVA series:Two types of door position sensor: magnetic or contact, as well as a two-way burglary blocking system with a patented electronic sensor;Supplied with mains or battery power, with internal electronic board and connection via dry contact;They do not have their own memory, they work with peripheral devices using a relay module;Can be supplied with quick release using a handle - with one movement from the inside, the door opens, even if the lock is closed all the way.Characteristics:Anti-panic - quick opening using a handle with dual function - front door, common entrance;A battery-powered or mains-powered lock with an electronic chip inside the lock;Three locking points;Backset – 63 mm;Center distance – 85 mm;The diameter of the bolt is 18 mm;Bolt protrusion – 29 mm;Rod travel – 20 mm;Latch diameter - 20 mm;Galvanized body;Magnetic door position sensor;Certificates - EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011.
